Moving Boiler Cost: 2026 UK Price Guide

Moving a boiler in the UK costs £600–£2,000 depending on distance and pipework. A 2026 guide to what is involved, when it is worth it, and what trades charge.

By The Renovation Notes Team · 8 min read · Published 3 August 2026 · updated within the last month · Sources checked 10 September 2026

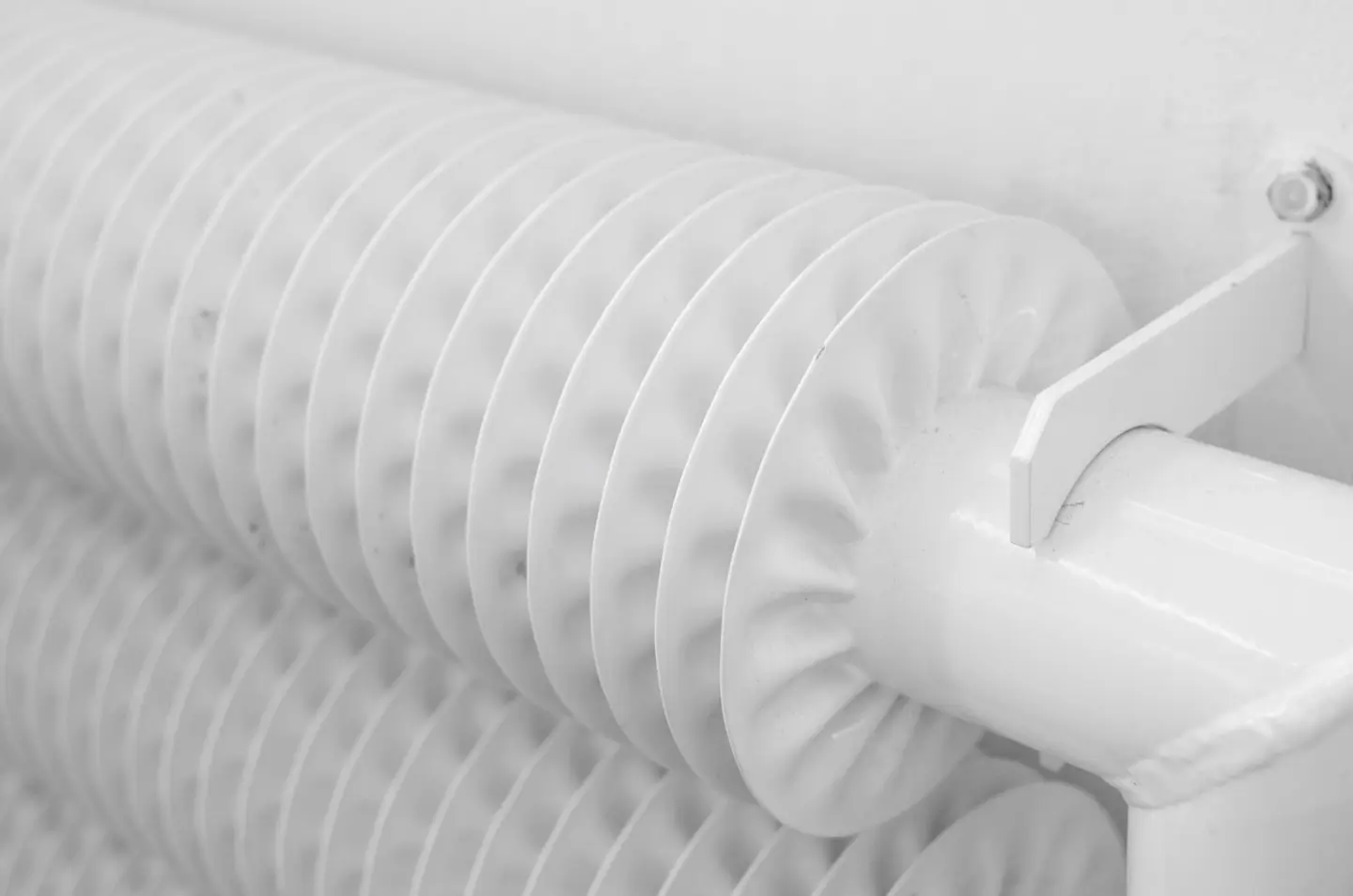

White metal tubed radiator system with pipe for industrial heating mounted to wall with hook in light room at home

In short

Moving a boiler to a new location in the same room costs £600–£1,000; moving to a different room costs £1,000–£2,000+. The main variables are the length of new gas pipe run, new flue route, and heating circuit pipework alterations. All work must be done by a Gas Safe registered engineer.

Moving a boiler is a job that comes up during kitchen renovations, loft conversions, garage conversions, and layout changes, anywhere the existing boiler position becomes inconvenient or conflicts with new plans. It is also a job that must be carried out by a Gas Safe registered engineer, without exception. Regulation 3 of the Gas Safety (Installation and Use) Regulations 1998 requires anyone working on a gas fitting to be competent and, unless they are an exempt category, to belong to a class of persons approved by the Health and Safety Executive, which in practice means the Gas Safe Register.¹ HSE puts it plainly: anyone employed to work on gas appliances in domestic premises must be Gas Safe registered and competent in that area of gas work.² Attempting to move your own boiler, or using an unregistered tradesperson, is both illegal and genuinely dangerous.

In 2026, the cost to move a boiler ranges from £600 to £2,000 for the majority of domestic jobs, with more complex relocations, particularly those requiring a long new flue run or extensive heating pipework alterations, reaching £2,500–£3,500.

What Affects the Cost of Moving a Boiler?

Flue relocation is often the biggest single cost. Modern combination (combi) boilers and system boilers use a balanced flue that must terminate on an external wall or roof. A new flue terminal costs £100–£300 for the parts; cutting a new core through masonry (typically 100–130 mm diameter) adds a further £100–£300 for the drill hire and labour. Total flue cost: £200–£600.

Gas pipe extension, the existing gas supply pipe must be extended to the new boiler location. The Gas Safe engineer will size the pipe correctly for the boiler’s gas rate. Copper pipe (typically 22 mm or 28 mm) costs £4–£8 per metre for materials; the engineer will add labour at their day rate. A 3 m extension through the same room is a minor cost; a 10 m run through walls and floor voids is more significant.

Heating pipework, the flow and return pipes to the radiator circuit and the hot water cylinder (if applicable) must be extended or modified. The further the boiler moves from the existing pipework, the more extensive, and expensive, this becomes.

Condensate pipe, all modern condensing boilers produce condensate (slightly acidic water) that must drain to an appropriate point (internal soil stack, trapped external drain, or purpose-built soakaway). Approved Document H allows the condensate to join sanitary pipework in pipe of at least 22 mm through a 75 mm condensate trap, and prefers a connection to an internal stack.³ A new condensate route adds £80–£250 depending on length and route.

Make-good, chasing pipes into walls, replastering, and redecoration after the work is not always included in engineers’ quotes. Clarify this at the quotation stage.

2026 Boiler Relocation Cost Guide

Relocation scenario	Typical cost range
Same wall, move up or down less than 1 m	£400–£700
Different wall in same room	£600–£1,000
Adjacent room (short pipe runs)	£900–£1,500
Different floor (e.g. kitchen to loft)	£1,200–£2,500
Airing cupboard to kitchen (across hall)	£1,000–£1,800
Complex relocation with major pipework	£2,000–£3,500

These costs assume the existing boiler is remaining in service (not being replaced). If you are also replacing the boiler at the same time, a combined relocation and new boiler installation typically costs less than doing the jobs separately, the engineer is already on site with tools and materials.

Boiler Replacement vs Relocation

It is worth asking: if the boiler is over 10 years old, does it make more sense to replace rather than relocate? The UK measures boiler efficiency with ErP seasonal efficiency rather than the American AFUE figure, and Approved Document L sets a minimum of 92% ErP for a gas wet-heating system in both new and existing dwellings, well above the 70–80% a typical older non-condensing boiler managed.⁴ The energy saving on a typical three-bedroom house can be £200–£400 per year on gas bills.

A new combi boiler supply and installation costs £1,800–£3,500 depending on output and brand. If relocation alone costs £1,200–£2,000, combining replacement and relocation at £2,500–£4,500 total may be the better financial decision over a 10-year horizon.

Government grant support: the Boiler Upgrade Scheme (BUS) in 2026 provides vouchers for heat pump installations (air source: £7,500; ground source: £7,500; biomass boiler: £5,000), not gas boiler replacements.⁵ If you are considering switching from gas to a heat pump, this is the moment to reconsider the entire heating system rather than simply moving the boiler.

What the Gas Safe Engineer Must Do

When relocating a boiler, the Gas Safe registered engineer must:

Tightness test the existing gas installation before and after modification
Install and commission the boiler in the new position in accordance with the manufacturer’s instructions
Verify the flue meets Approved Document J (Combustion Appliances) requirements, minimum clearances from windows, doors, and adjacent structures
Notify the work through Gas Safe Register, which passes it to building control under the Building Regulations
Issue a Benchmark commissioning document and, through their competent person scheme, a Building Regulations compliance certificate on completion

Always ask for the Benchmark document and the compliance certificate. There is no statutory “gas safety certificate” for an owner-occupier, that record is the landlord’s annual gas safety check, so these two documents are what you should be given. If an engineer is reluctant to provide them, do not use them.

Flue Position Regulations

The flue terminal position is regulated by Approved Document J and the boiler manufacturer’s installation instructions. These are the minimum separations Approved Document J sets for a fanned-draught balanced flue on an appliance rated up to 70 kW, which covers almost every domestic combi. A natural-draught flue needs more room in several of these directions.⁶

Feature	Minimum distance
Opening window, door or air vent, above, below or beside	300 mm
Internal or external corner, or a boundary alongside the terminal	300 mm
Below a gutter, soil pipe or drainpipe	75 mm
Horizontally from a vertical drainpipe or soil pipe	150 mm
Below eaves, a balcony or a car port roof	200 mm
Above ground, roof or balcony level	300 mm
From a surface or boundary facing the terminal	600 mm

These clearances can constrain where a boiler can be repositioned, particularly in terraced houses or where a preferred location is adjacent to a window or under a bedroom window. The engineer should assess feasibility before committing to a price.

Day Rates and Labour Costs in 2026

Gas Safe engineers charge:

Day rate: £280–£450/day (London: £350–£500)
Hourly rate: £60–£110/hour
Fixed-price relocation quote: more common and preferable, as it removes uncertainty

A same-room relocation takes 4–8 hours. A cross-floor relocation with significant pipework alterations takes 1–3 days. Get at least two quotes, both on a fixed-price basis with a clearly stated scope, before proceeding.

Building Regulations Notification

Moving a gas appliance is notifiable work under Building Regulations Part J (Combustion Appliances) and the Gas Safety Regulations. A Gas Safe registered business self-certifies the work and notifies the local building control authority on your behalf, this is included in their registration fees and should not be an additional charge to you. The Building Regulations give them no more than 30 days from completion to give you a copy of the certificate and to notify the local authority.⁷

If the boiler relocation is part of a larger project (loft conversion, kitchen extension) that already has a Building Regulations application, the gas work can be covered under that application instead.

The rules in this note are those that apply in England. Scotland, Wales and Northern Ireland have their own building standards and permitted development rights.
