Roof Tiles & Slates: Coverage, Fixings & Ventilation

How many tiles or slates per m² for each type, BS 5534 nailing and clipping rules, dry-fix systems, and eaves-to-ridge ventilation requirements.

By The Renovation Notes Team · 9 min read · Published 25 August 2025 · updated within the last month · Sources checked 30 September 2026

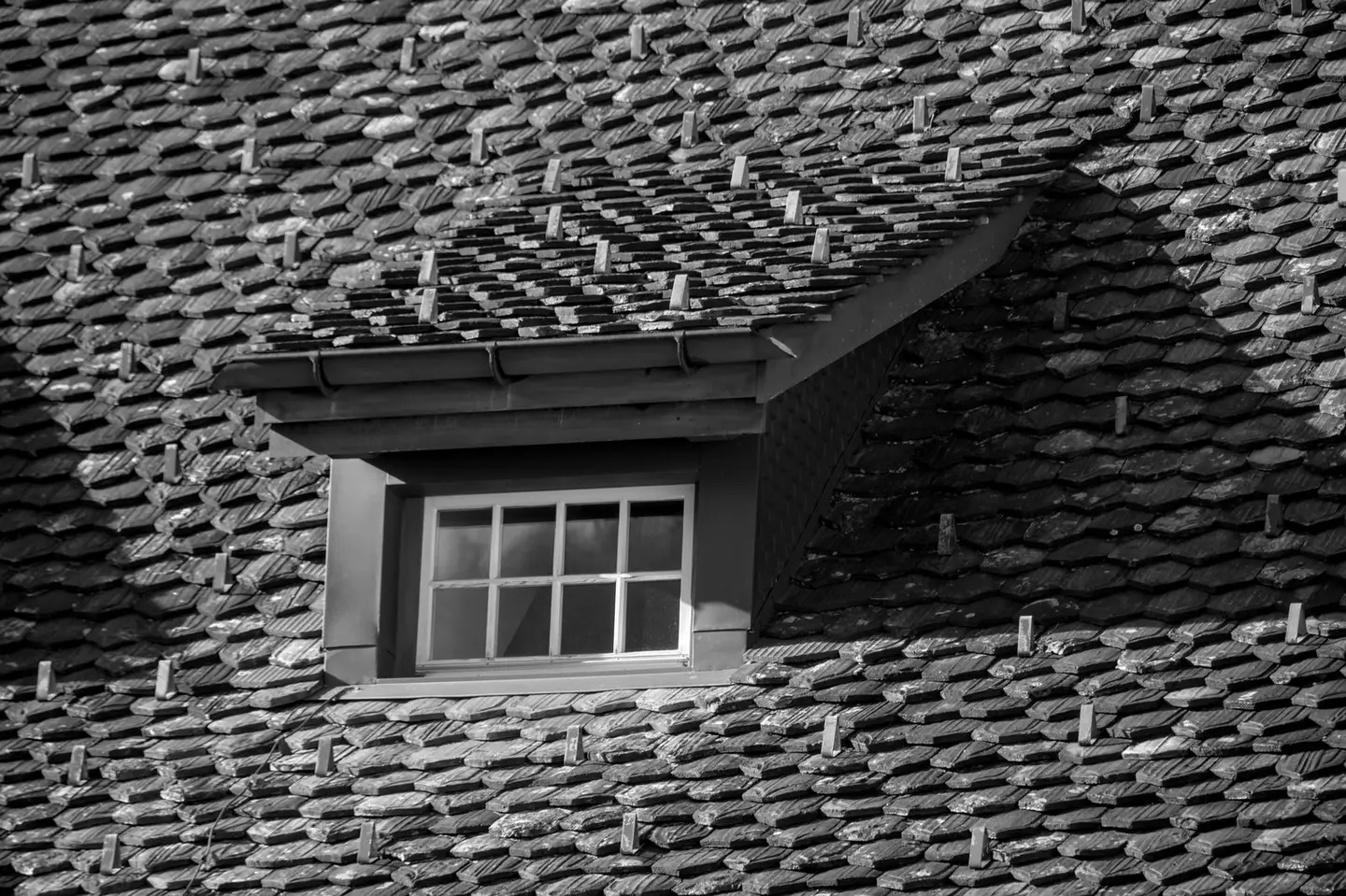

Black and white photo of a tiled roof featuring a dormer window, showcasing architectural details.

In short

Large-format concrete interlocking tiles cover about 10–11 tiles/m², clay plain tiles about 60/m² and natural slates roughly 13–20/m² depending on size and headlap. Under BS 5534:2014+A2:2018, mortar can no longer be relied on to resist wind uplift, so tiles, slates and ridge, hip and verge units need mechanical fixings.

Choosing between tiles and slates is rarely just an aesthetic call. Coverage rates, weight, fixing schedules and ventilation strategy all interact, get one wrong and you’ll be back on the roof within a decade. This guide works through each factor using the figures roofing contractors and building inspectors actually use.

Tiles and Slates Per m² by Type

Coverage is driven by the minimum headlap, the amount of each unit hidden beneath the one above, which in turn depends on roof pitch and exposure zone. The table below shows typical ranges for the main product families at a 35° pitch in a sheltered location; reduce headlap (and raise coverage) only with manufacturer approval and within BS 5534 limits.

Product type	Units/m² (approx.)	Weight (kg/m²)	Min pitch	Typical batten gauge (mm)
Concrete interlocking tile (large format, 420 × 330 mm)	10–11	45–54	17.5–25°	up to 345
Concrete double-roman / pantile (420 × 330 mm)	about 10	44–47	22.5–25°	up to 345
Clay plain tile (265 × 165 mm)	60	about 64	30–35°	up to 100
Natural Welsh slate (600 × 300 mm)	about 13	30–35	25°	250–263
Natural Spanish slate (500 × 250 mm)	18.5–20	25–30	20°	200–213
Fibre-cement slate (600 × 300 mm)	about 13	14–18	20°	250–263
Reconstituted stone slate	14–22	45–70	22.5°	Varies

The concrete and clay figures are manufacturers’ published data. Marley’s Modern concrete tile, for example, has a maximum gauge of 345 mm and covers 9.9 tiles/m² at a 75 mm headlap.¹ Marley’s Acme clay plain tile covers 60 tiles/m² at a 100 mm gauge and weighs 64 kg/m² laid.² The slate figures are worked from the gauge formula below, assuming a 75–100 mm headlap and a 3–5 mm gap between slates: a 600 × 300 mm slate at a 250 mm gauge covers about 13/m², and a 500 × 250 mm slate at a 200 mm gauge about 20/m².

Gauge = (exposed length) = (slate/tile length − headlap) ÷ 2 for slates; for single-lap tiles it equals the full exposed height. Always take batten gauge from the manufacturer’s technical data sheet verified against BS 5534 Section 6.

Nailing and Clipping: BS 5534 Requirements

BS 5534:2014+A2:2018 (Slating and tiling for pitched roofs and vertical cladding) is the current governing standard.³ Among the changes BSI lists for it, reliance on the tensile strength of mortar bedding to resist wind uplift has been withdrawn, so tiles, slates and ridge, hip and verge units all need mechanical fixings, to a specification set by a wind uplift calculation.³ In practice that means:

For tiles: single-lap interlocking tiles are typically nailed at the head and clipped at the tail, or held by the manufacturer’s own clip system, with the number of fixings set by the wind uplift calculation for the site. Double-lap plain tiles are nailed through the holes near the head.

For slates: natural slates are usually fixed with two copper or stainless-steel nails each, or with stainless-steel hooks, into treated softwood battens sized for the rafter spacing; fibre-cement slates also take a copper disc rivet at the tail.

Nail and batten sizes come from the manufacturer’s fixing specification. For its Acme clay plain tile, for example, Marley recommends 38 mm × 25 mm battens on rafters at up to 600 mm centres and 38 mm × 2.65 mm tile nails.²

BS 5534 Annex A sets the pressure test that decides which zones an underlay may be used in, while the worked wind uplift and fixing calculations sit in Annex K (mapped against BS EN 1991-1-4 UK National Annex).³ The standard divides the UK into geographical wind Zones 1 to 5.⁴ The zones are used chiefly to decide which underlays may be used where; the fixings for the tiles or slates themselves come from the site’s wind uplift calculation, which also takes account of height, exposure and roof pitch.

Practical costs for fixings per 100 m² roof:

Annular-ring shank nails (stainless, 3.35 mm × 30 mm, 1,500-pack): £25–£40
Aluminium or stainless tile clips (bag of 250): £18–£30
Copper nails for natural slate (1 kg, approx. 500 nails): £12–£20

Dry Verge and Dry Ridge Systems

Traditional mortar at verges and ridges is now seen as a weak point: settlement and shrinkage can make it crack and fall out, sometimes within a relatively short time, letting water in.⁵ Dry-fix systems eliminate mortar entirely, and BSI noted in 2018 that more than half of the UK’s new and refurbished roofs already used dry-fixed ridge and hip systems.⁶ The specification they are judged against is BS 8612:2018, which covers dry-fixed ridge and hip systems and dry-fixed verge systems on both new and existing roofs.⁶

Dry verge: Interlocking plastic caps are clipped over the edge of the tiles at the gable, giving a secure fixing without mortar.⁵ Avoid purely push-fit systems in severe exposure; specify mechanically fixed units with stainless screws. Material cost: £4–£8 per linear metre.

Dry ridge: The ridge tiles are each screwed or clipped to a timber ridge batten held on metal brackets, and a flexible ridge roll dressed onto the tiles on either side seals the joint. Vented versions leave a continuous gap beneath the roll that can provide the high-level ventilation a cold roof needs. Material cost including carrier, clips and roll: £12–£20 per linear metre.

Eaves and Ridge Ventilation

Roof ventilation is a Building Regulations Approved Document C matter rather than a Part L one: paragraph 6.10 sends you to BS 5250, although the 2013 Approved Document still names the 2002 edition rather than the current BS 5250:2021 (Management of moisture in buildings).⁷⁸ For a cold pitched roof (insulation at ceiling level):

Eaves: ventilation equivalent to a continuous 25 mm opening along each eaves (25,000 mm² per metre run), typically provided by over-fascia vents or ventilated soffit panels, with eaves trays or rafter vents keeping a clear air path past the insulation.
Ridge: corresponding outlet is required at or near the ridge, minimum 5 mm continuous equivalent open area per pitch, which NHBC states as a free area of not less than 5,000 mm²/m against 25,000 mm²/m at the eaves.⁹ Vented dry ridge systems, high-level tile vents or purpose-made ridge vent tiles can all provide this, provided their declared free areas add up to the requirement.
Counter-battens: where the breather membrane is laid taut over sarking boards or rigid insulation rather than draped between rafters, counter-battens lift the tiling battens so that water and air can pass beneath them.

For warm roofs (insulation between and/or above rafters), vapour control on the warm side of the insulation becomes essential, and there is no roof void to ventilate. That is not the same as needing no ventilation at all: under a high-resistance underlay such as bitumen felt, BS 5250:2021 still wants a ventilated void of at least 25 mm between insulation and underlay, plus roughly 15 mm for underlay drape, so 40 mm in practice.¹⁰

Ventilation tile or vent unit rates: in-line tile vents roughly £16–£50 each depending on profile and type; over-fascia vent strips about £1.30–£2.80 per metre.

Material Cost Summary

Material	Supply cost (£/m², 2026)	Notes
Concrete interlocking tiles	£8–£16	Budget to mid-range; includes clips
Clay plain tiles	£22–£45	Handmade clay at top end
Natural Welsh slate	£30–£60	Source and grade dependent
Natural Spanish/Portuguese slate	£18–£35	S1 grade preferred for UK exposure
Fibre-cement slate	£10–£18	40-year BBA-certified products
Reconstituted stone slate	£25–£55	Region-specific aesthetics

These are material-only supply costs; add roofing labour at £18–£28/m² for tile work and £22–£35/m² for natural slate on typical domestic projects. Scaffolding and associated costs are additional.

Relevant Standards and Guidance

BS 5534:2014+A2:2018, primary standard for all slating and tiling
BS 8612:2018, dry-fixed ridge, hip and verge systems
BS 5250:2021, moisture management including roof ventilation
NHBC Standards Chapter 7.2, pitched roofs (warranties require BS 5534 compliance)
Approved Document C, site preparation and resistance to moisture
Approved Document L (2021 edition), conservation of fuel and power, thermal performance

When specifying any roofing system, the wind uplift and fixing calculation to BS 5534 (worked examples in Annex K) should be carried out or confirmed by the roofing contractor and retained as part of the building file, increasingly expected by building control bodies and warranty inspectors.³

The rules in this note are those that apply in England. Scotland, Wales and Northern Ireland have their own building standards and permitted development rights.
