Vapour Control Layers & Breather Membranes

VCLs on the warm side, breather membranes on the cold side: sd-values explained, interstitial condensation risk, taping requirements and UK costs.

By The Renovation Notes Team · 8 min read · Published 13 February 2026 · updated within the last month · Sources checked 2 October 2026

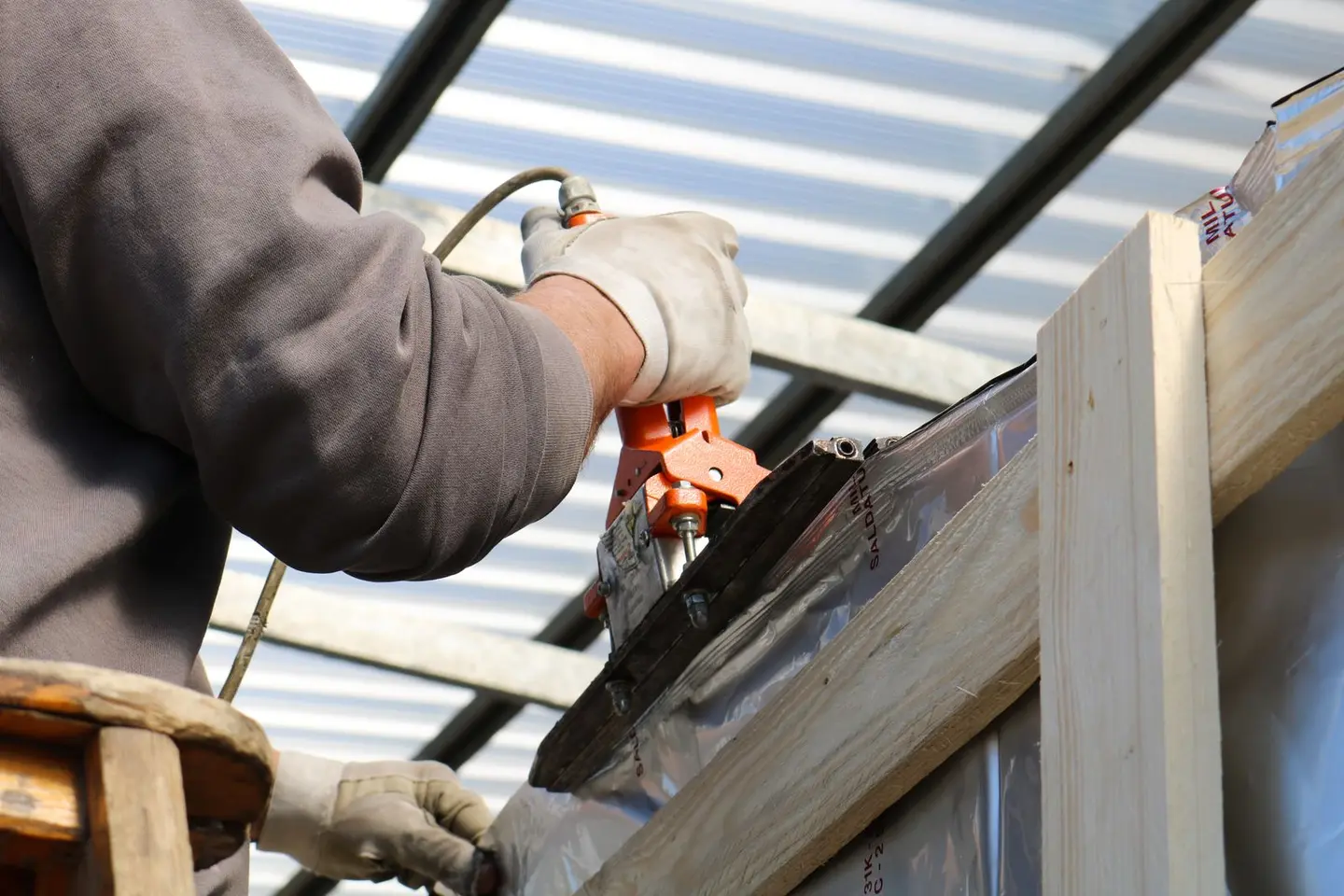

A construction worker using a power tool on a building project in Treviso, Italy.

In short

Polypropylene VCLs cost £0.50–£1.20/m² (membrane only); breather membranes and vapour-permeable underlays £0.60–£2.50/m². sd-values range from about 0.02–0.25 m (breather membranes) to over 100 m (AVCL); correct placement and lapped, taped joints are what BS 5250 and BRE BR 262 expect, and they are how a builder shows Approved Document C is met.

Two thin membranes do very different jobs in a well-detailed building envelope, and confusing them, or installing them on the wrong side, is one of the most persistent and costly mistakes in UK construction. A vapour control layer (VCL) restricts moisture-laden air from entering the insulated zone; a breather membrane allows water vapour to escape from the structure while keeping liquid water out. One goes on the warm side of the insulation; the other on the cold side.

The Physics: Why Side Matters

In UK winters, indoor air is typically warmer and more humid than outdoor air. Water vapour diffuses through the building fabric from high concentration (inside) to low concentration (outside). As it passes through progressively cooler layers, it can reach its dew point within the construction, a phenomenon called interstitial condensation. If moisture accumulates faster than it can dry out, timber rots, metal corrodes, and insulation loses effectiveness.

The fix is to slow vapour entry on the warm side (VCL) and allow vapour to escape on the cold side (breather membrane). The system works as a diode: vapour is discouraged from entering but, if any does, it can exit. BS 5250:2021 (management of moisture in buildings) sets out how to assess condensation risk, by the Glaser method of BS EN ISO 13788 or by dynamic simulation, and Approved Document C points to BS 5250, BS EN ISO 13788 and BRE BR 262 (thermal insulation, avoiding risks) as ways of showing that a wall or roof resists interstitial condensation.¹ Neither is a regulation and neither imposes a blanket requirement: a British Standard is a code of practice and BR 262 is guidance. What makes the analysis effectively unavoidable is Requirement C2 of the Building Regulations, which asks that a building be constructed so that interstitial and surface condensation do not cause damage, and a risk analysis is the normal way of showing that.¹

sd-Values: The Measure of Vapour Resistance

The equivalent air-layer thickness (sd) in metres quantifies a material’s resistance to vapour diffusion. A higher sd means the material allows less vapour through.

Membrane type	sd-value (m)	Typical application
Lightweight breather membrane (≥50 g/m²)	0.02–0.25	Cold-side roof and wall
Timber-frame wall breather membrane (warranty specification)	0.12 or less	Timber-frame cold side
Standard polypropylene VCL	50–100	Warm-side general construction
Reinforced AVCL (airtight VCL)	>100 (often >500)	Passivhaus, airtight envelopes
Polyethylene sheeting (125–250 µm)	roughly 10–50	Basic warm-side / DPM

Warranty providers set a baseline for timber-frame walls: LABC Warranty, for example, asks for a 500 gauge (125 micron) polyethylene sheet, vapour-control plasterboard or a third-party-accredited proprietary membrane on or near the warm side of the insulation, unless a calculation shows another solution works.² Very airtight builds, such as Passivhaus, usually use a dedicated AVCL or an intelligent membrane with every joint taped.

VCLs: Warm-Side Application

A VCL should be fixed on the inner (warm) face of the insulation, never on the cold side. In a typical UK timber-frame wall: outer cladding / breather membrane / structural sheathing / stud with insulation between / VCL / service cavity / plasterboard.

Common VCL materials:

Polypropylene sheet (0.2–0.5 mm): the standard product for roofs and walls. Lightweight, tear-resistant, cost £0.50–£1.20/m².
Reinforced foil VCL: aluminium-foil laminate with a scrim core; provides thermal reflectivity as well as vapour resistance; cost £1.20–£2.50/m². Often used in pitched roof conversions.
Intelligent / variable-sd membrane: sd varies with humidity; pro clima quotes under 0.25 m in summer (allowing inward drying) and more than 25 m in winter for its Intello range.³ Suitable where inward drying potential is important, such as renovations with limited outward drying. Brands include Intello and similar; cost £2.00–£5.00/m².

Installation Requirements

Joints must be lapped by at least the overlap the maker specifies and taped with a compatible adhesive tape rated for that membrane (butyl or acrylic-based); Proctor, for example, asks for overlaps of at least 150 mm on its vapour control layers.⁴ Penetrations (pipes, cables, rafters) must be sealed with pre-formed collars or flexible tape. A poorly sealed VCL is nearly as bad as no VCL, even small gaps allow significant convective vapour transport. This is covered by Building Regulations Approved Document C (site preparation and resistance to contaminants and moisture).

Breather Membranes: Cold-Side Application

A breather membrane sits on the cold outer face of the insulation or structural sheathing, beneath the cladding or tiling batten. In a pitched roof: tiles / battens / counter battens / breather membrane / rafters with insulation between / VCL / ceiling.

Standard breather membranes are usually non-woven polypropylene laminates that shed liquid water but let water vapour through. For timber-frame walls, LABC Warranty asks for a vapour resistance below 0.6 MNs/g (an sd of about 0.12 m) and at least class W2 water resistance under BS EN 13859-2, or W1 in very severe exposure.⁵ They must comply with BS EN 13859-1 (for roofs) or BS EN 13859-2 (for walls).⁶⁷

Standard domestic breather membrane: £0.60–£1.10/m²
Heavy-duty vapour-permeable roofing underlay (LR type under BS 5250): £1.20–£2.50/m²
Vapour-permeable bituminous underlay: £2.00–£4.00/m²

BS 5534:2014+A2:2018 covers underlays in pitched roofing, including fixing, laps and wind uplift classification: for an underlay that is not fully supported at pitches of 15° to 35°, horizontal laps should be at least 150 mm (100 mm at 35° and above), and side laps at least 100 mm.⁸⁹¹⁰

For rainscreen cladding, the breather membrane must also act as a temporary weather barrier during construction. Each product states how long it can be left exposed to daylight, typically a few months, so the cladding must follow within that window; check the product’s certification. UKAS suspended the BBA’s accreditation on 26 February 2026, so while that stands no new accredited BBA certificates are being issued; one issued before that date remains valid, and an equivalent from another UKAS-accredited certification body, or a European Technical Assessment, carries the same weight.¹¹

Interstitial Condensation Risk Analysis

Before specifying, a Glaser-method condensation check (or dynamic hygrothermal simulation with WUFI or similar) should confirm the construction is safe. The Glaser method is a steady-state calculation set out in BS EN ISO 13788; it gives a conservative worst-case result.¹² For novel or complex constructions, particularly retrofit of solid walls or flat roofs, dynamic simulation is more realistic.

The most common failure modes in UK practice are:

VCL omitted in timber-frame or SIPs roof under metal cladding (condensation on inner face of sheathing).
VCL and breather membrane reversed, vapour barrier on cold side traps moisture in structure.
Incomplete taping at penetrations, creates localised condensation hotspots.
Vapour-impermeable insulation (e.g. PIR) on cold side without analysis, can cause issues in flat-roof refurbishments.

Cost Summary

Product	Membrane cost	Tape/accessories	Installed cost (total)
Standard PP VCL	£0.50–£1.20/m²	£0.30–£0.60/m²	£1.50–£3.50/m²
Reinforced foil VCL	£1.20–£2.50/m²	£0.40–£0.80/m²	£2.50–£5.00/m²
Intelligent VCL	£2.00–£5.00/m²	£0.50–£1.00/m²	£4.00–£9.00/m²
Standard breather membrane	£0.60–£1.10/m²	£0.20–£0.40/m²	£1.50–£3.50/m²
LR pitched-roof underlay	£1.20–£2.50/m²	£0.30–£0.60/m²	£2.50–£5.00/m²

Installed costs include labour (roofer or dryliner) and consumables but not structural works. Rates are 2025–2026 UK national averages.

Relevant Standards

BS 5250:2021, management of moisture in buildings¹³
BS EN ISO 13788, hygrothermal performance / Glaser method¹²
BS EN 13859-1 / -2, flexible sheets for waterproofing (pitched roofs / walls)⁶⁷
BS 5534:2014+A2:2018, code of practice for slating and tiling⁸
BRE BR 262, thermal insulation: avoiding risks¹
NHBC Technical Standards Chapter 6.2, external timber-framed walls
Building Regulations Approved Document C, moisture resistance¹

Getting the two membranes right, VCL warm, breather membrane cold, all joints lapped and taped, costs very little relative to the remediation of a moisture-damaged structure. It is one of the few building fabric details where correct specification and careful site execution matter more than the cost of the product.

The rules in this note are those that apply in England. Scotland, Wales and Northern Ireland have their own building standards and permitted development rights.
