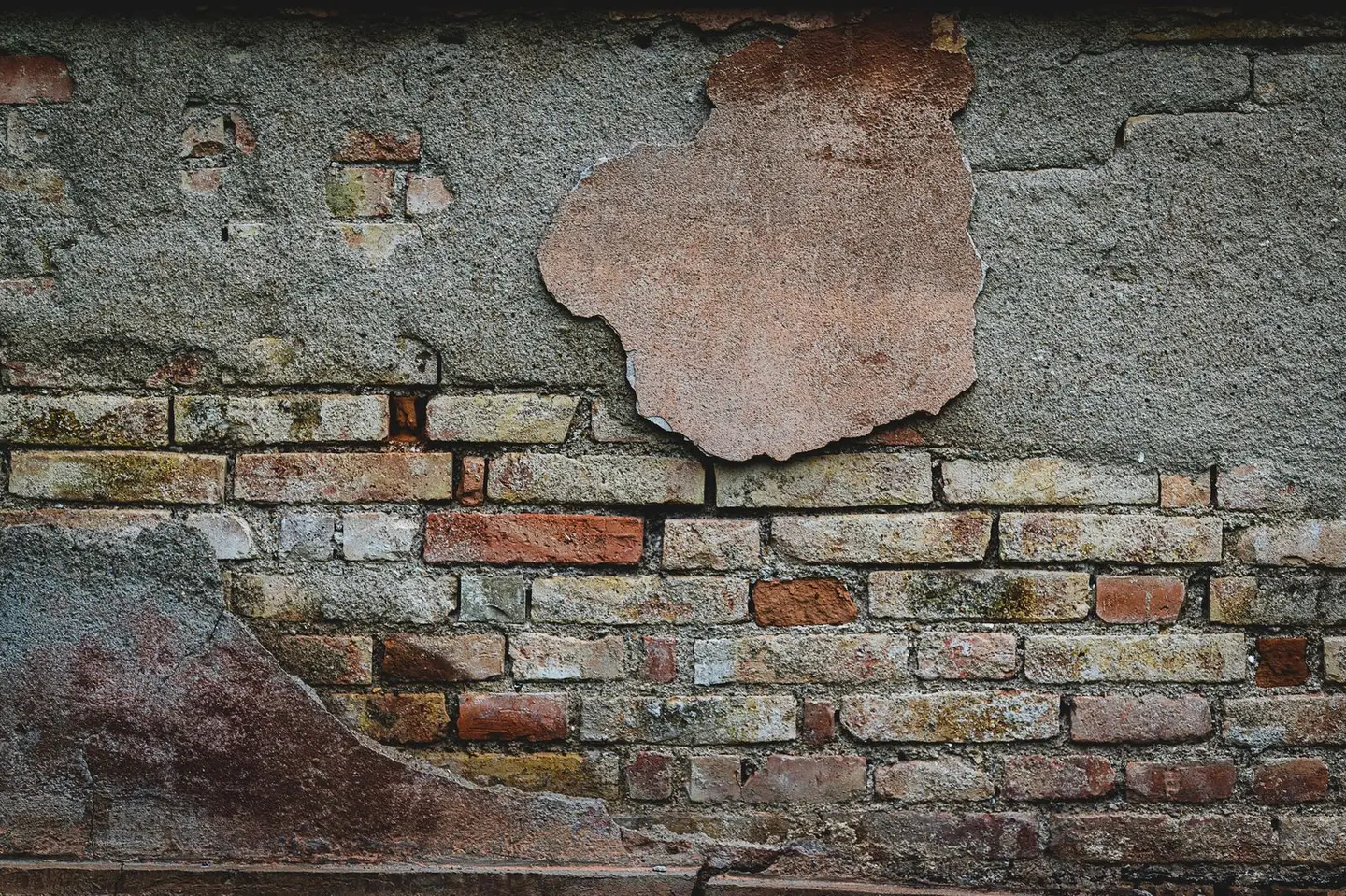

Spalling bricks — where the face of the brick flakes, crumbles, or breaks away — is one of the most common external wall problems on older UK properties. Left untreated, it allows water into the wall, accelerates further deterioration, and can eventually compromise the structural integrity of the leaf. The good news is that spalling brickwork is usually repairable without replacing an entire wall.
Depending on the extent, repair costs range from £200–£600 for spot repointing and a handful of brick replacements, to £2,500–£6,000+ for a severely affected elevation.
Why Bricks Spall
Understanding the cause is essential before specifying the repair — fix the spalling without addressing the root cause and it will return.
| Cause | Description | Remedy |
|---|---|---|
| Frost action | Water absorbed into brick freezes and expands, fracturing the face | Replace affected bricks; investigate why bricks are staying wet |
| Cement pointing | Hard cement mortar (cement:sand 1:3) traps moisture in the brick, which spalls | Hack out cement pointing; repoint with lime mortar |
| Rising or penetrating damp | Persistent moisture saturation weakens brick | Fix drainage, damp-proof course or pointing; then replace bricks |
| Inappropriate brick type | Soft internal bricks used externally | Replace with hard-fired external-grade brick |
| Blown render | Render traps moisture that spalls the brick when it escapes | Remove render; dry out; repoint or render correctly |
| Chemical attack | Sulfate attack on mortar; acid rain on soft brick | Repoint with sulfate-resistant mortar |
Choosing the Right Repair Method
Repointing alone — raking out old mortar and applying fresh mortar at the correct lime content — is the first step and sufficient where bricks are structurally intact but just weathered. Most spalling on pre-1920 properties is caused by cement pointing applied during the 1960s–1980s renovation wave. Raking this out and replacing with a softer NHL (natural hydraulic lime) mortar stops the moisture trap and allows the wall to breathe.
Brick replacement is needed where:
- The brick face has fallen away or the brick is crumbling
- The brick is hollow when tapped (indicating it has delaminated internally)
- Water is visibly tracking through the face
Consolidants (brick-hardening resins applied by spray or brush) can temporarily stabilise softening bricks and are used in conservation work. They are not a permanent solution for actively spalling bricks but extend the life of marginally soft ones.
Brick slips (thin face tiles cut from matching bricks) can cover shallow surface spalling where the brick body is still sound — used when the whole brick cannot be removed easily (e.g., in cavity walls or where reinforcing runs behind). A skilled bricklayer fixes slips with specialist adhesive and repoints around them.
Cost Per Brick and Per M²
| Repair Type | Cost Per Brick | Notes |
|---|---|---|
| Individual brick cut out and replace | £25–£60/brick | Includes mortar, matching brick, labour |
| Brick slip repair | £15–£35/brick | Where full removal is not possible |
| Repointing only | £25–£60/m² | Lime mortar; labour intensive |
| Consolidant application | £15–£30/m² | Labour + materials; temporary measure |
Matching bricks is a significant cost and effort driver. New bricks rarely match aged Victorian or Edwardian stock in colour, texture, or size — imperial bricks (65 mm course height, 215 × 102 × 65 mm) are slightly larger than modern metric bricks. Salvage yards are the best source for matching period bricks and typically charge £0.80–£2.50 per brick depending on type and rarity.
Worked Example: Repairing a Gable End
Scenario: 15 m² gable end with cement pointing causing spalling across 30% of the face.
| Item | Cost |
|---|---|
| Scaffold for access (2 weeks) | £400–£800 |
| Rake out all cement pointing (15 m²) | £600–£900 |
| Repoint with NHL 3.5 lime mortar (15 m²) | £900–£1,500 |
| Replace 25 spalled bricks (cut out, source salvage, lay) | £625–£1,500 |
| Total | £2,525–£4,700 |
Scaffold dominates small jobs — a single-lift scaffold for a typical gable end costs £400–£800 for two weeks, with additional weekly hire charges thereafter. Batching repairs to maximise scaffold time makes economic sense.
Lime vs Cement Mortar: The Critical Choice
Using cement mortar (1:3 mix) on pre-1920s brickwork is one of the most common and damaging mistakes in UK property maintenance. Old soft bricks — especially London Stock, Gault clay or handmade varieties — were designed to work with soft lime mortars that sacrificed themselves slowly (the “sacrificial joint” principle) rather than trapping moisture in the brick.
Recommended mortar mixes for period brickwork:
- Sheltered location, moderately absorptive brick: NHL 2 or lime putty mortar, 1:2.5 (lime:sharp sand)
- Exposed location or harder brick: NHL 3.5, 1:3 or 1:2.5
- Very exposed (chimneys, copings, below DPC): NHL 5, 1:3
Never use ready-mixed cement mortar (grey bag mix) on pre-1920 brickwork.
Building Regulations and Planning
Standard maintenance and repair of brickwork does not require planning permission or Building Regulations approval. However:
- Listed buildings: any repointing or brick replacement requires Listed Building Consent if it would alter the character of the building — even like-for-like repair should be discussed with the conservation officer.
- Conservation areas: repairs visible from a public highway may attract scrutiny; match materials to the original closely.
- External wall insulation: if you’re considering adding EWI as part of a wider repair project, this does require Building Regulations sign-off and potentially planning permission.
Finding a Specialist
Lime repointing and period brickwork repair requires a mason or bricklayer experienced with historic materials — not a general builder who applies cement mortar by default. Look for:
- Members of the Stone Federation Great Britain (also covers brick conservation)
- Heritage Skills Academy trained tradespeople
- Bricklayers recommended by the Society for the Protection of Ancient Buildings (SPAB)
Get at least three quotes specifying lime mortar type, sand source, and whether they will match the original mortar analysis if the property is listed.
